Description
Slocable MC4 Connector 1500VDC Solar Panel IP68 is a high-quality waterproof and dustproof connector

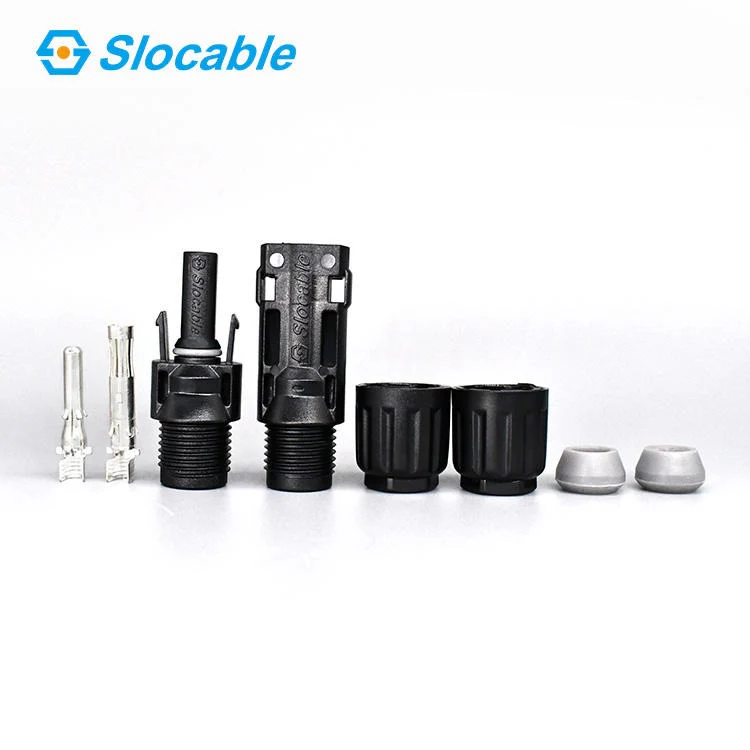

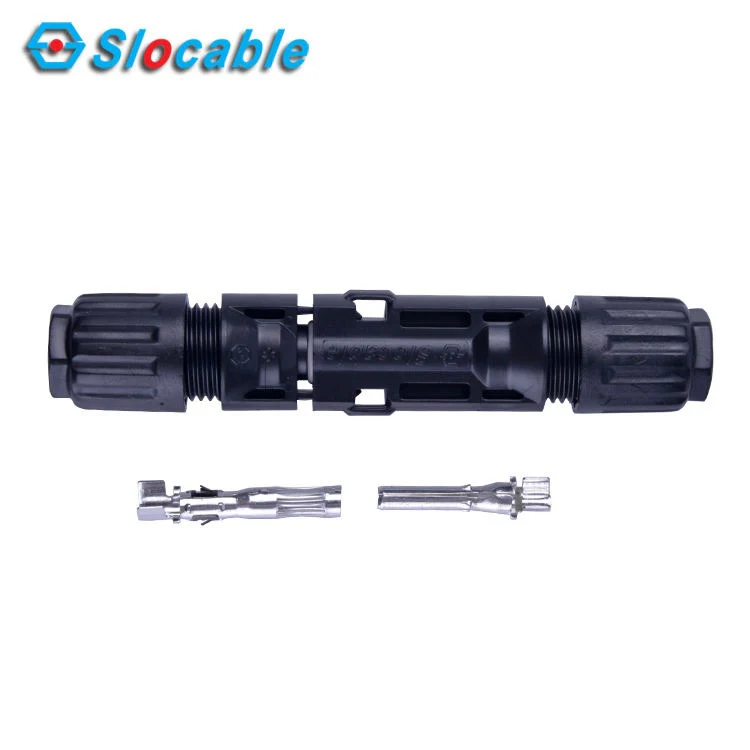

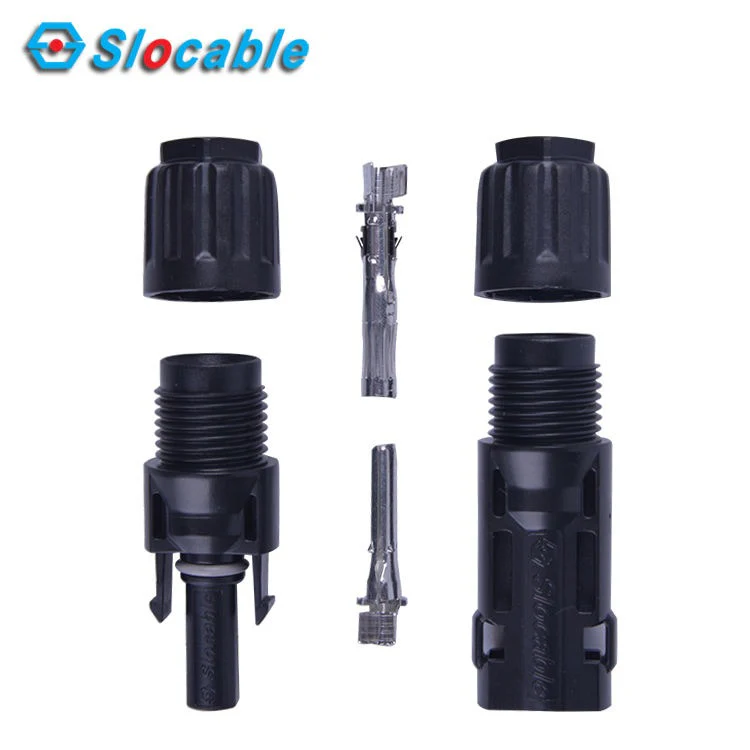

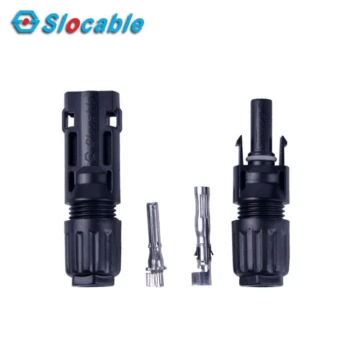

Note : It is a single set of male & female connector with pin
| Rated Current: | 50A |
| Rated Voltage: | 1500V DC |
| Certificate: | TUV , CE , ISO |
| Insulation Material: | PPO |
| Contact Material: | Copper, Tin plated |
| Waterproof Protection: | IP68 |
| Contact Resistance: | <0.5mΩ |
| Ambient Temperature: | -40℃~+85℃ |
| Flame Class : | UL94-V0 |
| Suitable Cable : | 2.5-6.0mm² (14-8AWG ) |
