Description

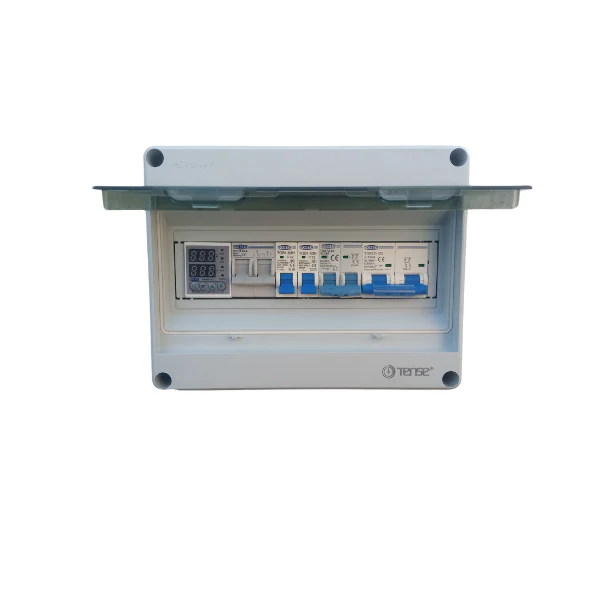

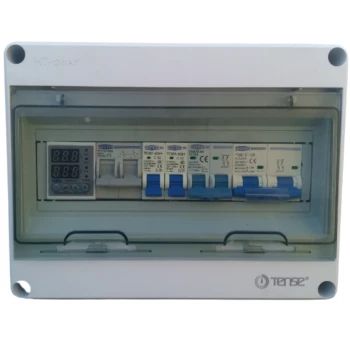

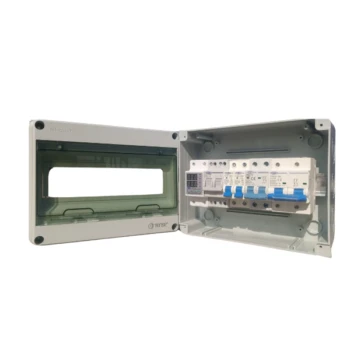

Solar Protection Box
✔ Tense 12-Way Distribution Box (Plastic, Waterproof) x 1 – Ensures a safe and organized electrical setup

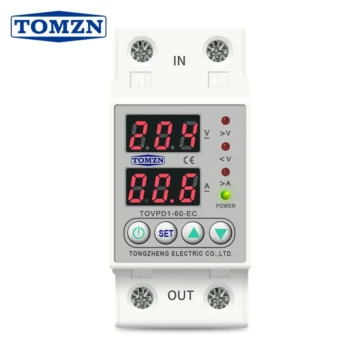

✔ Tomzn 4th Gen 2-in-1 Voltage Protector (63A) x 1 – Protects against over-voltage, under-voltage, and over-current

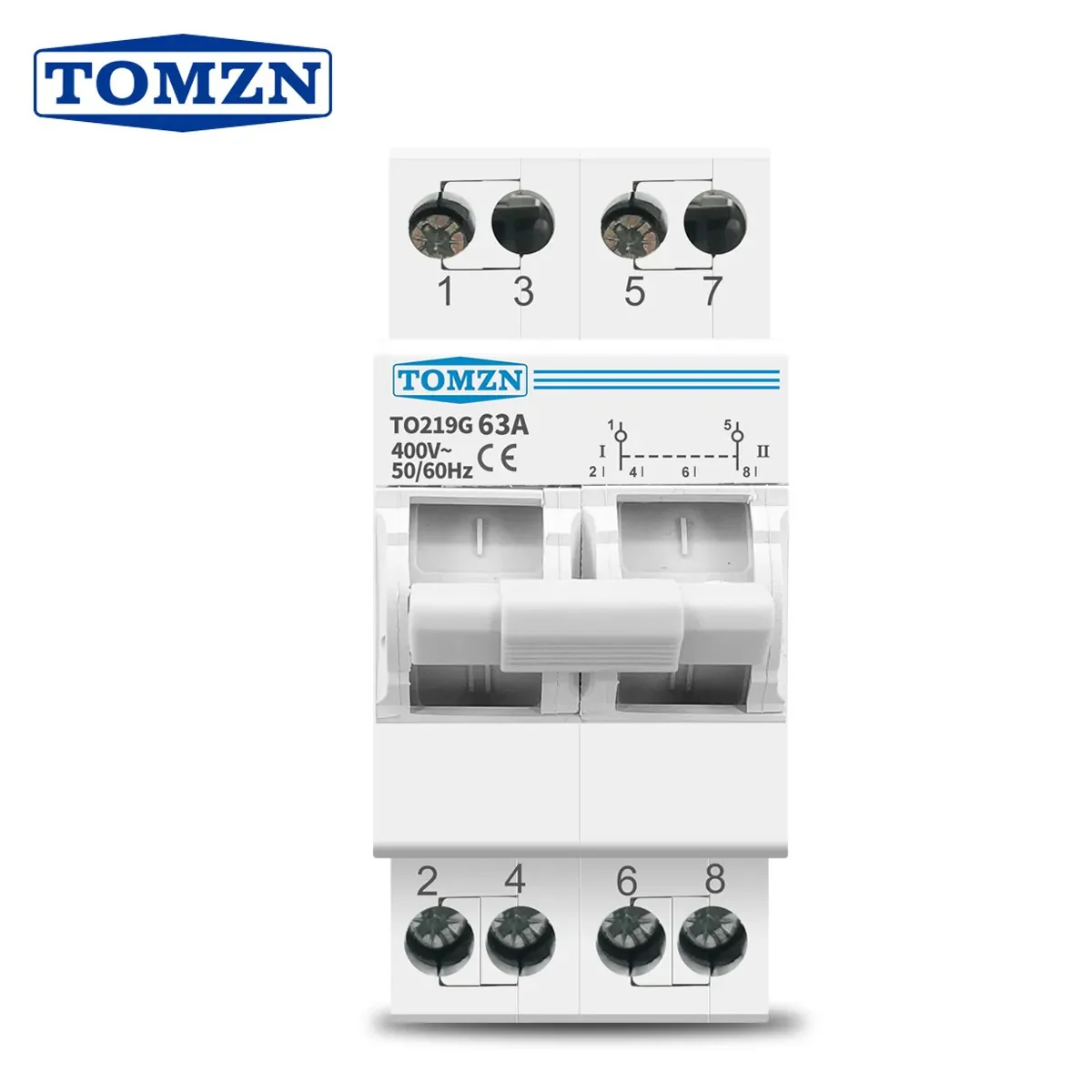

✔ Tomzn MTS Breaker Type Changeover (63A) x 1 – Seamless switching between power sources
✔ Tomzn AC 1P MCB Breaker (32A) x 2 – Protects AC circuits from short circuits and overloads

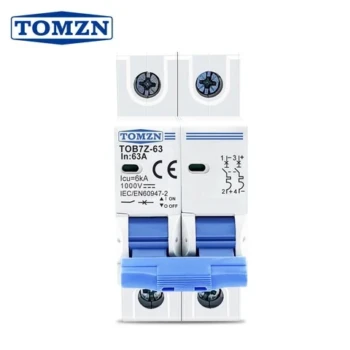

✔ Tomzn DC 2P MCB Breaker (32A) x 1 – Essential for solar DC circuit protection

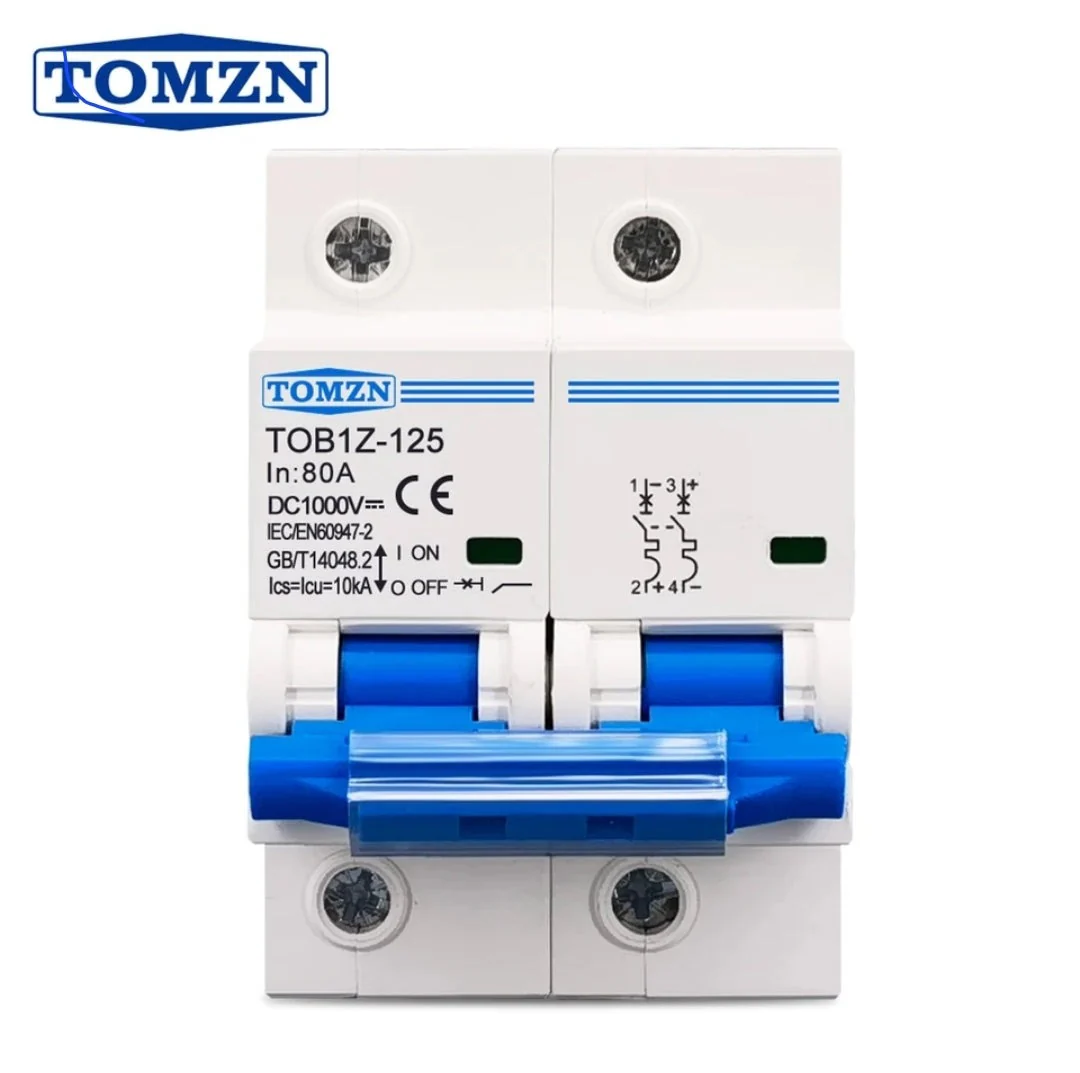

✔ Tomzn 2P DC Breaker (125A) x 1 – Handles high-current protection for solar setups
| Tomzn 2P 63A MTS Dual Power Manual Transfer Isolating Switch Interlock Circuit Breaker TOMZN breaker type changeover | Tomzn 1P AC MCB Circuit breaker C type 230/400V | Tomzn 2P DC 1000V Solar Mini Circuit Breaker 32A | Tomzn 2P DC MCB Circuit Breaker 125A/100A | |
| Over-voltage protection | 2 Lines transfer switch | C Type AC MCB | TOB1Z-16 circuit breaker is used for DC rated voltage 1000V, current 32A, on line, overload and short circuit protection, and can also be used as line occasional operation. Circuit breakers are used in DC applications such as communications. | Tomzn 2P Dc Circuit Breaker 600V 125Amp in Pakistan Trips quickly in case of over-voltage and over-current. Widely used for Inverter to Battery and other DC Equipment |
| Under-voltage protection | 2 poles | 230/400V | Brand: | Rated current: DC 125A |
| Over-current protection | breaker type | Best Performance | Tomzn | Mounting: 35mm din rail Rated |
| Automatic recovery | Din rail | Voltage: DC 600V | ||
| Voltage display(voltage measurement) |
Brand:
|
|||
| Current display (current measurement) | Tomzn | |||
| Voltage calibration: Voltage +-10% adjustable. A13 | ||||
| Restore factory settings: press the down button for more than 12s | ||||
| Fault inquiry: Press the UP button from more than 12S Product Parameters: | ||||
| Model number:TOVPD1-60-EC | ||||
| Power supply:230VAC 50/60Hz | ||||
| Max.Loading power:1~40A | ||||
| Adjustable(default:40A) 1~63A Adjustable(default:63A) | ||||
| Over-voltage protection value range:230V~300~OFF | ||||
| (default:270V) Over-voltage recovery voltage range:225V–295V(default:250V) | ||||
| Over-voltage protection action time:0.1s~30s(default value:0.5s) | ||||
| Over-voltage recovery delay time:1s~500s(default:30s) | ||||
| Under-voltage protection value range:140V–210V –OFF | ||||
| (default:170V) Under-voltage recovery voltage range:145V–215V | ||||
| (default:190V) Under-voltage | ||||
| protection action time:0.1s~30s(default:0.5s) | ||||
| Under-voltage recovery delay time:1s~500s(default:30s) | ||||
| Over-current adjustment range:1-40A (default:20A) 1-63A (default:40A) Over-current action range:0.1~30 second (default:0.5s) Over-currentrecovery delay time:1s~500s(default:30s) | ||||
| Power-on delay time:1s~500s(default:10s) 9.Power consumption : <2W 10.Electric machinery life : 100,000 times 1 | ||||
| Installation:35mm DIN rail 110V Version | ||||
| Power supply:110VAC 50/60Hz | ||||
| Max.Loading power:1~63A Adjustable(default:63A) | ||||
| Over-voltage protection value range:80V~300~OFF(default:145V) | ||||
| Over-voltage recovery voltage range:75V–295V(default:140V) | ||||
| Over-voltage protection action time:0.1s~30s(default value:0.5s) | ||||
| Over-voltage r ecovery delay time:1s~500s(default:30s) | ||||
| Under-voltage protection value range:80V–300V –OFF(default:90V) | ||||
| Under-voltage recovery voltage range:85V–305V (default:95V) | ||||
| Under-voltage protection action time:0.1s~30s(default:0.5s) | ||||
| Under-voltage r ecovery delay time:1s~500s(default:30s) | ||||
| Over-current adjustment range:1-63A (default:40A) | ||||
| Over-current action range:0.1~30 second (default:0.5s) | ||||
| Over-current r ecovery delay time:1s~500s(default:30s) | ||||
| Power-on delay time:1s~500s(default:10s) | ||||
| Power consumption : <2W 9.Electric machinery life : 100,000 times | ||||
| Installation:35mm DIN rail | ||||
|
Brand:
|
||||
| Tomzn |
